Ⅰ、Application：
Motorized and high temperature butterfly valve(type 6000J) is matched with motorized actuator. It is widely used in saving flow device of industry department. Control the manufacture process automatically and in the remote distance. Especially for the highest temperature which is not over 650 centigrade. Lower pressure difference request the site of lower leakage.
Motorized and high temperature butterfly valve(type 6000J) is matched with motorized actuator. It is widely used in saving flow device of industry department. Control the manufacture process automatically and in the remote distance. Especially for the highest temperature which is not over 650 centigrade. Lower pressure difference request the site of lower leakage.

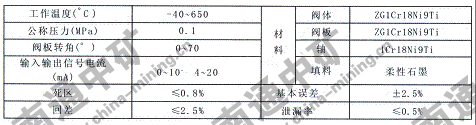

Ⅱ、 Main technical parameter
dead zone， return difference， intrinsic error， leakage rate

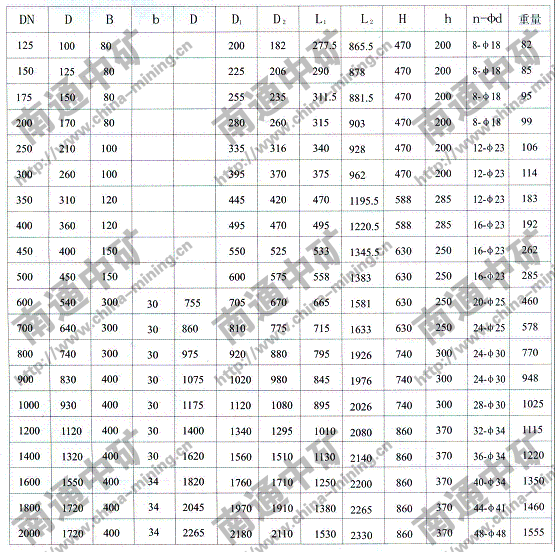

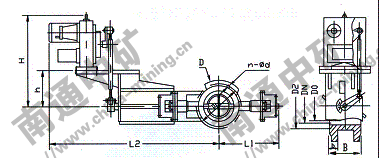

Ⅲ、 Outline and installation dimension：（refer to the following drawing and table）

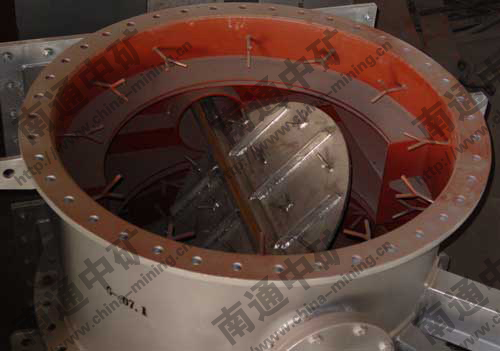

Type 6000J motorized high-temperature butterfly valve
